Description

Key Features:

• High-Speed Engine: Experience the sheer force of the TS700’s high-speed engine, meticulously designed to provide superior performance, even when navigating the most challenging trenching scenarios.
• Ample Fuel Tank Capacity: Redefine productivity and minimize interruptions with the TS700’s expansive fuel tank, ensuring prolonged operational hours and sustained workflow.
• Advanced Filter System: Elevate your operational efficiency with the TS700’s integrated premium filter system, ensuring enhanced durability, reduced maintenance, and consistent performance.
• ElastoStart Technology: Prioritize user convenience with STIHL’s ElastoStart technology and decompression valve, ensuring seamless starts and optimized operational efficiency.

Versatile Utility:

The TS700 transcends conventional limitations, offering unparalleled versatility. Whether wielded hand-held for intricate precision or seamlessly integrated with the GeoCart for enhanced stability and control, its adaptability ensures peak performance across a diverse array of trenching applications.

Technical Specifications:

• Total Weight:
  • With 700mm Bar: [To be filled based on actual weight]
• Engine Type: 2-Stroke
• Max. Power at Operating Speed: 5.0kW at 9,300rpm
• Bore: 56mm
• Stroke: 40mm
• Displacement: 98.5cc
• Idling Speed: 2,700 rpm
• Max. Spindle Speed: 5,080 rpm
• Fuel Type: Mix Unleaded + 2-Stroke oil
• Mixture Ratio: 50:1
• Noise Levels:
  • Sound Pressure Level: 100dbA
  • Sound Power Level (Kwa=2): 109dbA
• Vibration Acceleration:
  • Rear Handle Bench Tested (K=2): 7.5m/s
  • Tubular Handle Bench Tested (K=2): 8.6m/s
  • Field Tested Handheld (K=2): 28.43m/s
  • Field Tested GeoCart Handle (K=2): 5.93m/s
• Fuel Tank Capacity: 1.2L
• Drive Belt Part Number: 9490-000-7920
• Spark Plug and Gap: NGK BPMR 7A / 0.5mm
• Chain Speed at Max. Spindle Rotation: 10.2m/s
• Chain Break-Out Force: 6.57 kN

Note: Specifications are subject to change without prior notice.

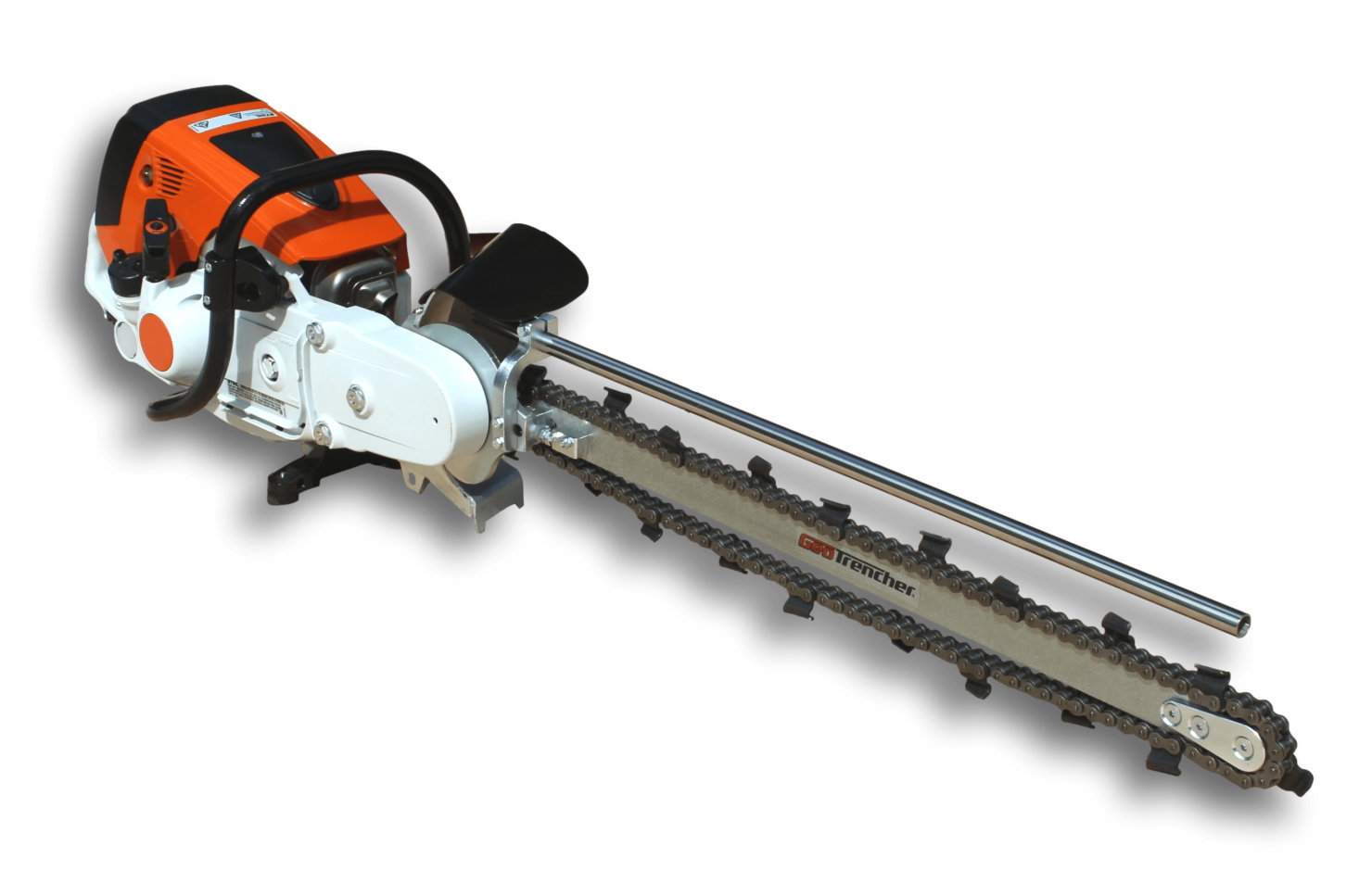

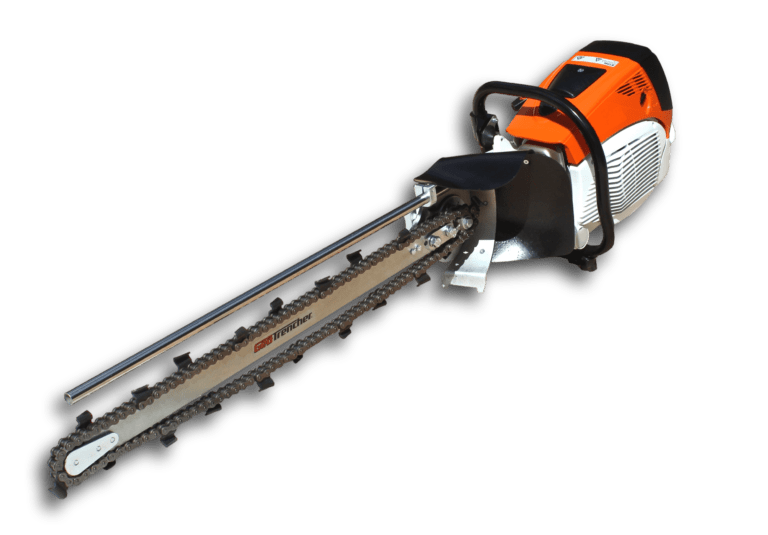

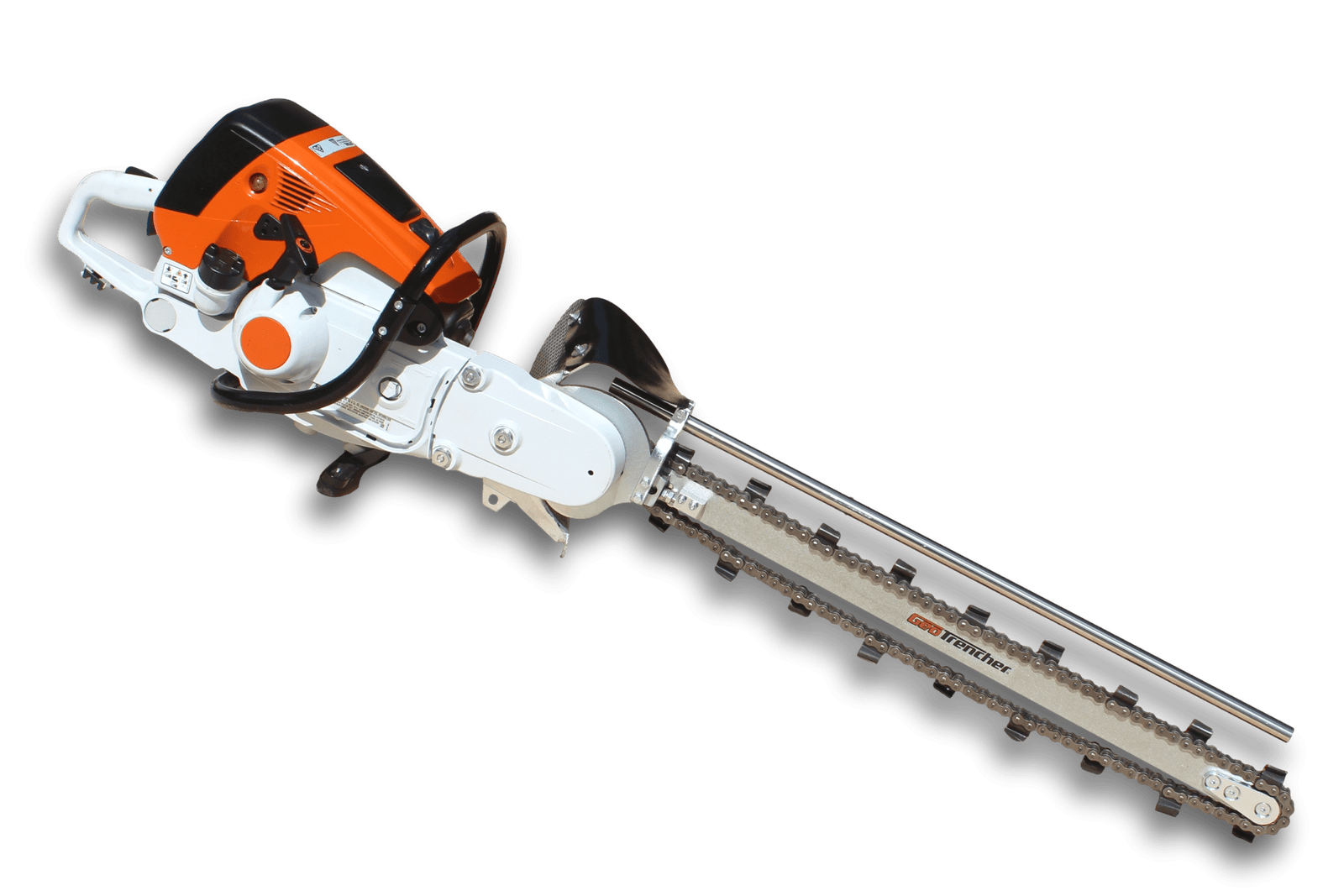

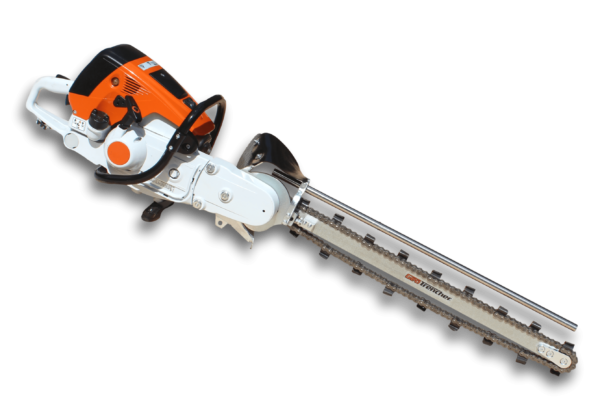

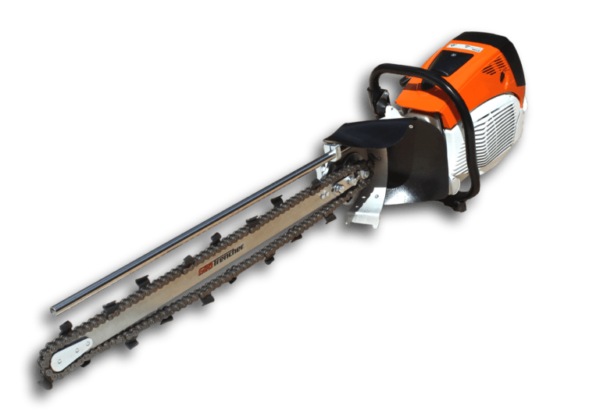

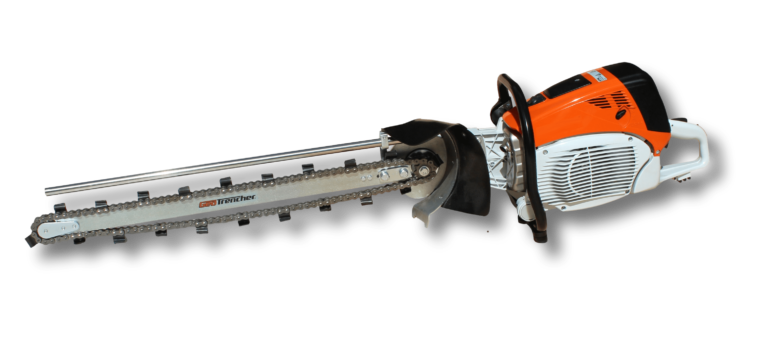

Elevate your trenching endeavors with the GeoTrencher – 700mm Trencher – Stihl TS700. A perfect amalgamation of power, precision, and versatility, this formidable combination promises unparalleled trenching excellence, ensuring optimal results, operational satisfaction, and superior efficiency in every application. With the Stihl TS700 and 700mm GeoTrencher synergy, achieving excellence is not merely a possibility; it’s a guarantee.
